Product Introduction：

TPWA series multi-stage centrifugal pump is horizontal, single-suction multi-stage and segmental, which is an energy-saving series of product developed and produced lately, a new product based on the major technical improvement for TPWA mutli-stage centrifugal pump. Its performance parameters and technical indexes have all been improved significantly, so it has much noticeable advantages as high efficiency, low running noise, strong cavitation resistance, reasonable structure and long service life.

The full line of TPWA multi-stage centrifugal pump includes 5 type and 40 specifications, whose performance range is:flowQ=1.5～191m3/h, lift head H=17～247m and rotation speed n=1450r/min.    TPWA multi-stage centrifugal pump is used to transport the clear water or other liquids with similar physical and chemical propertiea as clear water with temperature less than 80℃. It is widely applicable for water supply and drainage of city buildings, factories and mines, especially for refrigeration and air-conditing water supply in guesthouse, hotels and recreation areas.

Range of Application:

Daily and fire water supply for high-rise,water supply and discharge in mines,cyclic pressurization,air-conditioning system.

Type Designation

125 TPWA×5

125 –Pump inlet diameter(mm)

T – Turbine type

P– single-stage impeller

W – To transport clear water or liquids similar as water with temperature less    than   80℃

A –A new generation of improved product

5 – Pump stage number

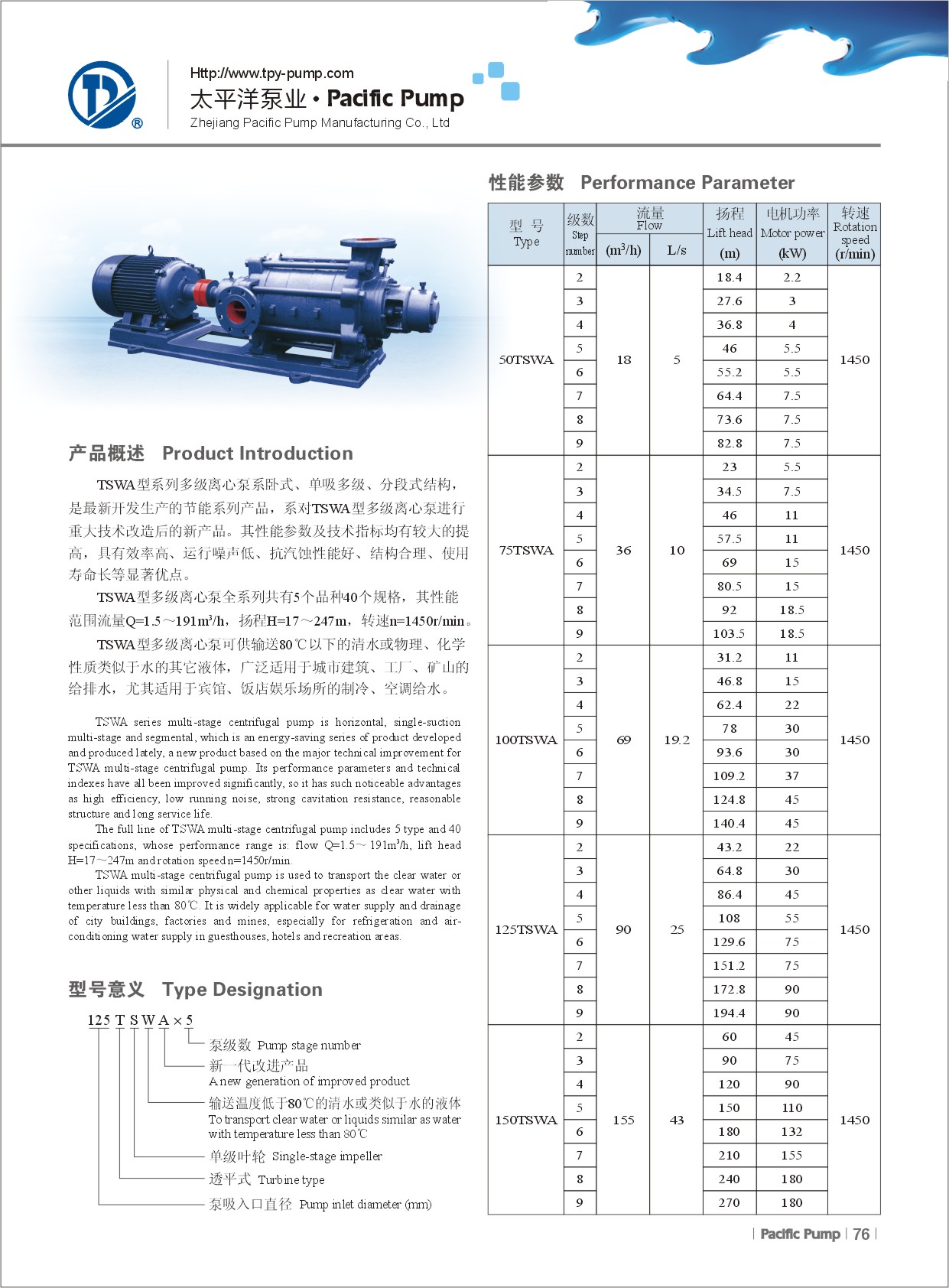

Technology Parameters:

Flow:：15-191m3/h

Head：17-292m

Power：2.2-180kw

Rotary speed:450r/min

Calibre：50-150mm

Temperature range：-15℃-+80℃
