Application :
JKJ vacuum box unit is a vacuum box unit, which consists of 2X vacuum pump, vacuum box, electric appliance box, vacuum meter and electromagnetic drain valve. When certain vacuum or pressure is obtained in the vacuum pump, the requirement of processing the procedures in vacuum is met. ZJK vacuum box unit is to be widely applied to many industries such as crafts, chemical, pharmaceutical, metallurgy, electronic, research and so on.
Technical parameters
| type | capacity of internal chamber （m3） | vacuum percentage (Pa) | voltage （V） | specification diameter ×length (mm) | specification of the vacuum pump used |
| ZKJ-400 | 0.075 | 400×600 | 2X-4A | ||
| ZKJ-500 | 0.137 | 500×700 | 2X-8A | ||
| ZKJ-600 | 0.226 | 6×10-2 | 380 | 600×800 | 2X-8A |
| ZKJ-700 | 0.308 | 700×800 | 2X-15 | ||
| ZKJ-800 | 0.502 | 800×1000 | 2X-15 | ||
| ZKJ-1000 | 1.02 | 1000×1300 | 2X-30 |

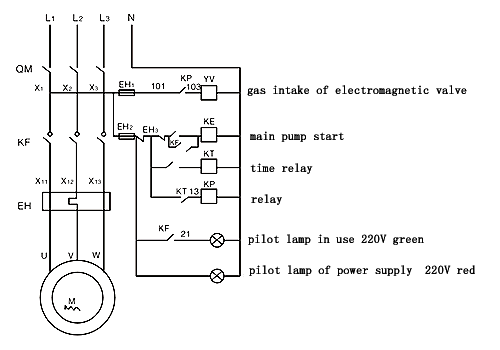

Circuit diagram of vacuum unit
